Strelka 0.3: UML-based rule modeling tool for Eclipse with rule code generation
New features
- Strelka 0.3 runs under the Eclipse Framework, which provides a user-friendly interface and a better performance.
- The proven MDT OCL parser is used.
- Integration with rule code generation services via the rule exchange format R2ML: just right-click on a rule circle and select the target rule language.
Download Strelka 0.3 for Eclipse
Just download the .zip file, unpack it to some folder and run eclipse.exe
.
No additional installation is needed. When the application has started, open a sample
rule model diagram from the ./examples
folder.
Download Strelka 0.3 for Eclipse approx. 47 Mb
You may want to read the Strelka manual (PDF) for the version 0.3.
Sample screenshots

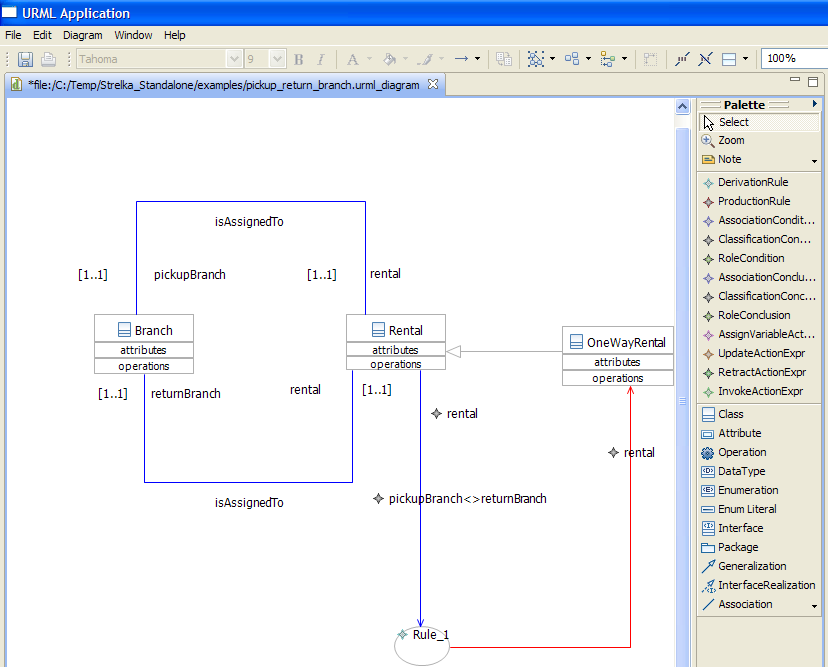

Rule_1: If the return branch of a rental is not the same as the pickup branch then the rental is a one way rental.

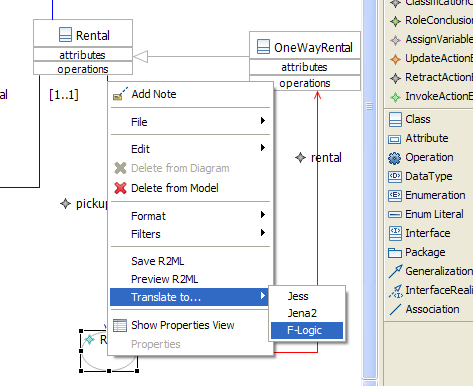

Right-click on the rule circle and select the target rule language

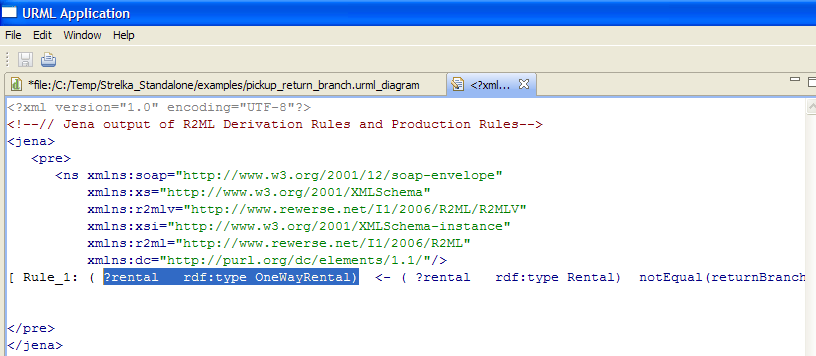

Strelka connects to the I1 rule interchange service and shows the rule in Jena 2
You may also download the previous versions of Strelka, which come as Fujaba plugin.
Download Strelka 0.2 as Fujaba plugin
The downloaded file includes Fujaba Tool Suite with the Strelka plugin preconfigured. If you have Java installed on your computer, then just unzip the Strelka_0.2_jdk1x.zip
file and start fujaba.jar
.
The tool comes with several example files. These files contain sample UML models and rules. You may want to read the Strelka manual (PDF).
Strelka Rule Modeling Tool ver.0.2 for Java 1.5 (approx 17 Mb) Download (.zip).
Strelka Rule Modeling Tool ver.0.2 for Java 1.6 (approx 16 Mb) Download (.zip).
Previous Versions
Version 0.1. The downloaded file includes Fujaba Tool Suite with the Strelka plugin preconfigured. If you have Java installed on your computer, then just unzip the Strelka_0.1.zip
file and start fujaba.jar
.
The tool comes with three example files: examples.fpr.gz, EURent.fpr.gz and FilterExamples.fpr.gz. These files contain sample UML models and rules. You may want to read the Strelka manual (PDF).
Strelka Rule Modeling Tool ver.0.1 for Java 1.5 (approx 15 Mb) Download (.zip).
Strelka Rule Modeling Tool ver.0.1 for Java 1.6 (approx 15 Mb) Download (.zip).
