More Examples

R2ML supports Integrity Rules (or constraints), Derivation Rules, Production Rules and Reaction Rules (or ECA Rules).

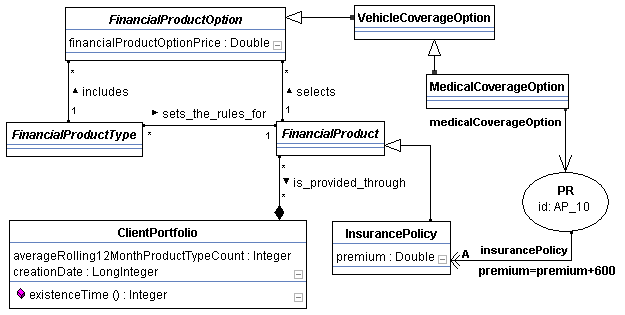

Using Strelka you can model rules visually:

Strelka serialize rules into the rule markup language R2ML:

<r2ml:ProductionRuleSet r2ml:ruleSetID="UServProductionRulesSet"
                           xmlns:r2ml="http://www.rewerse.net/I1/2006/R2ML"
                           xmlns:xs="http://www.w3.org/2001/XMLSchema"
                           xmlns:userv="http://www.businessrulesforum.com/2005/userv#"
                           xmlns:op="http://www.xpath2operations.org/op#"
                           xmlns:swrlb="http://www.w3.org/2003/11/swrlb">
<r2ml:ProductionRule r2ml:ruleID="AP_10">
 <r2ml:conditions>
  <r2ml:ObjectClassificationAtom r2ml:class="userv:MedicalCoverageOption">
    <r2ml:ObjectVariable r2ml:name="medicalCoverageOption" r2ml:class="userv:MedicalCoverageOption"/>
  </r2ml:ObjectClassificationAtom>
 </r2ml:conditions>
 <r2ml:producedActionExpr>
 <r2ml:UpdateActionExpression r2ml:property="userv:VehicleInsurancePolicy.premium">
  <r2ml:contextArgument>
   <r2ml:ObjectVariable r2ml:name="vehicleInsurancePolicy" r2ml:class="userv:VehicleInsurancePolicy"/>
  </r2ml:contextArgument>
  <r2ml:DatatypeFunctionTerm r2ml:datatypeFunction="op:numeric-add">
   <r2ml:dataArguments>
    <r2ml:AttributeFunctionTerm r2ml:attribute="userv:VehicleInsurancePolicy.premium">
     <r2ml:contextArgument>
      <r2ml:ObjectVariable r2ml:name="vehicleInsurancePolicy" r2ml:class="userv:VehicleInsurancePolicy"/>
       </r2ml:contextArgument>
      </r2ml:AttributeFunctionTerm>
      <r2ml:TypedLiteral r2ml:lexicalValue="600" r2ml:datatype="xs:integer"/>
     </r2ml:dataArguments>
    </r2ml:DatatypeFunctionTerm>
   </r2ml:UpdateActionExpression>
  </r2ml:producedActionExpr>
 </r2ml:ProductionRule>
<r2ml:ProductionRuleSet>

You can translate rules into platform specific rule languages and execute them.
