## Deadlines

- The deadline for QI and QII is Thursday 31 January (end of the day).

- The deadline for QIII is Friday 8 February (end of the day).

- The deadline for QIV and QV is Friday 15 February (end of the day).

Submission is via pdf uploaded to the relevant TurnItIn assignments on Vision. I *love* Vision.

Note that these questions contribute to your final exam mark.

# Question I: regexes

*Notes on answering this question:* In my experience the most convincing presentation for your answers is to cut-and-paste the text below, then just highlight the non-matching regexes in RED and the matching regexes in GREEN. So you end up with a pretty multicolour list of QandAs, and the marker just scans the page looking for the right pattern. You’re very welcome to write an English justification; this is not required by the question but may help the marker to understand your thinking and so give you feedback.

In the questions below, “matches” refers to whole-string matching (and not to matching a substring).

- Which of the following matches regex /
`abababa`

/?

1)`abababa`

2)`aaba`

3)`aabbaa`

4)`aba`

5)`aabababa`

- Which of the following matches regex /
`ab+c?`

/?

1)`abc`

2)`ac`

3)`abbb`

4)`bbc`

- Which of the following matches regex /
`a.[bc]+`

/?

1)`abc`

2)`abbbbbbbb`

3)`azc`

4)`abcbcbcbc`

5)`ac`

6)`asccbbbbcbcccc`

- Which of the following matches regex /
`abc|xyz`

/?

1)`abc`

2)`xyz`

3)`abc|xyz`

- Which of the following matches regex /
`[a-z]+[\.\?!]`

/?

1)`battle!`

2)`Hot`

3)`green`

4)`swamping.`

5)`jump up.`

6)`undulate?`

7)`is.?`

- Which of the following matches regex /
`[a-zA-Z]*[^,]=`

/?

1)`Butt=`

2)`BotHEr,=`

3)`Ample`

4)`FIdDlE7h=`

5)`Brittle =`

6)`Other.=`

- Which of the following matches regex /
`[a-z][\.\?!]\s+[A-Z]`

/?

(\s matches any space character)

1)`A. B`

2)`c! d`

3)`e f`

4)`g. H`

5)`i? J`

6)`k L`

- Which of the following matches regex /
`(very )+(fat )?(tall|ugly) man`

/?

1)`very fat man`

2)`fat tall man`

3)`very very fat ugly man`

4)`very very very tall man`

- Which of the following matches regex /
`<[^>]+>`

/?

1)`<an xml tag>`

2)`<opentag> <closetag>`

3)`</closetag>`

4)`<>`

5)`<with attribute=”77”>`

- Write a regex to identify dates of the form dd/mm/yyyy.

I expect dd to range from 01 to 31, and mm to range from 01 to 12, and I expect yyyy to range from 0001 to 9999 and in particular to*not*be 0000 (the Gregorian calendar predates this; see Year 0 and the invention of 0).

However, I do not expect you to cross-reference mm against dd or to restrict yyyy, so that e.g. 31/02/0231 is fine.

Do**not**use backreferences or negative lookahead (so if your answer contains`?!`

, then it’s not admissible for this question). - Write a regex to identify dates of the form dd/mm/yyyy or dd.mm.yyyy, but
*not*using mixed separators such as dd/mm.yyyy.

You may use backreferences, negative lookahead, and other fancy tricks, if convenient. *(Unmarked)*Explain whether a regex can identify correct bracketing, as in`((a))`

but not`(((a)`

.*(Unmarked)*Explain the relevance of the regex /`Whiske?y`

/- Write a regex for the set of even numbers without leading zeroes (base 10; so the alphabet is
`[0-9]`

). Note that 0 and 2 and 10 and 20 are even numbers without leading zeroes, and 00 and 02 and 1 and 01 are not even numbers without leading zeroes. Check that your regex accepts 100 and 10012.

# Question II: Grammars

*Notes on answering this question:*

- **Pay attention to what kind of grammer I ask for** (*regular*, or *context free*, or some other type).

- For instance: if I ask for a **regular** grammar and you give me some other kind of grammer, then you may lose marks!

- In particular, if your regular grammar contains a rule of the form $S \longrightarrow ab\gamma$ or $S \longrightarrow D$ or $S \longrightarrow \varepsilon D$, then this is not a regular grammar and your answer contains an error.

- Always clearly specify the start symbol.

- The alphabet (set of tokens) of a language cannot contain ε. ε is the empty string, that is, an absence of tokens. If your answer contains something of the form T={ε,…} (where T is supposed to be a set of tokens for your language) — then your answer is probably wrong and you’re probably losing marks.

*Some of you have not met sets notation before, so here’s a quick tutorial:*

- The language determined by the regex /`a*`

/ is { aⁿ | n ∈ ℕ} or equivalently { aⁿ | n ∈ {0,1,2,…} } or equivalently { aⁿ | n ≥ 0 }.

- The language determined by the regex /`(a|b)?`

/ is { a, b, ε }.

- The language determined by the regex /`a+b+`

/ is { aᵐbⁿ | m,n ≥ 1 } or equivalently { aᵐbⁿ | m ≥ 1, n ≥ 1 } or equivalently { aᵐbⁿ | m,n ∈ {1,2,3,…} }.

- The language determined by the English description “any nonzero digit” is { 1, 2, 3, 4, 5, 6, 7, 8, 9} or equivalently { 1, 2, … , 9} or equivalently { n | 9 ≥ n ≥ 1 } or equivalently { n | 0 < n ≤ 9 }.

Now on to the questions:

- Write the language determined by the regex /
`a*b*`

/ - Write a
**regular**grammar to generate the language determined by the regex /`a*b*`

/ - Write the language determined by the regex /
`(ab)*`

/ - Write a regular grammar to generate the language determined by the regex /
`(ab)*`

/ - Write the language determined by /
`Whiske?y`

/. The alphabet is {W,h,i,s,k,e,y} (W is a terminal symbol here). - Write a regular grammar to generate the language matched by /
`Whiske?y`

/ - Write a regular grammar to generate decimal numbers; the relevant regex is /
`[1-9][0-9]*(\.[0-9]*[1-9])?`

/.

You may find it useful to use notation resembling D ::= 0 | 1 | … | 9 to denote an evident set of ten production rules. - Give a
**context free**grammar for the language L = { aⁿ bⁿ | n ∈ ℕ}. - Give a context free grammar for the set of properly bracketed sentences over alphabet {
`0`

,`(`

,`)`

}. So`0`

and`((0))`

are fine, and`00`

and`0)`

are not fine. - Write a context free grammar to generate possibly bracketed expressions of arithmetic with + and * and single digit numbers. So
`0`

and`(0)`

and`0+1+2`

and`(0+9)`

are fine, and`(0+)1`

and`12`

are not fine. - Give a grammar for palindromes over the alphabet {
`a`

,`b`

}. - A parity-sequence is a sequence consisting of 0s and 1s that has an even number of ones. Give a grammar for parity-sequences.
- Write a grammar for the set of numbers divisible by 4 (base 10; so the alphabet is
`[0-9]`

). You might like to read this page on divisibility testing, first. You may use dots notation to represent an evident sequence, as in for example the sequence $Z3,Z6,Z9,\dots,Z999$ to mean “Z followed by some number divisible by three and strictly between 0 and 1000”. - Write a grammar for the set of numbers divisible by 3 (base 10; so the alphabet is
`[0-9]`

). So for example`0`

,`003`

, and`120`

should be in your language, and`1`

,`2`

, and`5`

should not. *(Unmarked)*Write a grammar for the set of numbers divisible by 11 (base 10; so the alphabet is`[0-9]`

).

# Question III: More on grammars

- State which of the following production rules are
*left-regular*,*right-regular*,*left-recursive*,*right-recursive*,*context-free*(or more than one, or none, of these):- $\mbox{Thsi} \longrightarrow \mbox{This}\ $ (a rewrite auto-applied by Microsoft Word).
- \(\mbox{Sentence} \longrightarrow \mbox{Subject Verb Object}\). (Here Sentence, Subject, Verb, and Object are non-terminal symbols.)
- $X \longrightarrow Xa$.
- $X \longrightarrow XaX$.

- What is the object language generated by $X \longrightarrow Xa$ (see lecture 2)? Explain your answer.
- Construct context-free grammars that generate the following languages:
- $(ab|ba)^*$,
- $\{(ab)^na^n\ |\ n\geq 1\}$,
- $\{w\in\{a,b\}^*\ |\ \mbox{ $w$ is a palindrome }\}$,
- $\{w\in\{a,b\}^*\ |\ \mbox{ $w$ contains exactly two $b$s and any number of $a$s }\}$,
- $\{a^nb^m\ |\ 0\leq n\leq m\leq 2n \}$.

- Consider the grammar $G=(\{S,A,B\}, \{a,b\}, P, S)$ with productions

$$

\begin{array}{lcl}

S & \longrightarrow & S{}A{}B\ |\ \varepsilon\\

A & \longrightarrow & aA\ |\ \varepsilon\\

B & \longrightarrow & Bb\ |\ \varepsilon

\end{array}

$$- Give a leftmost derivation for $aababba$.
- Draw the derivation tree corresponding to your derivation.

- State with proof whether the following grammars are ambiguous or unambiguous:
- $G=(\{S\}, \{a,b\}, P, S)$ with productions $S \longrightarrow aSa\ |\ aSbSa\ |\ \varepsilon$.
- $G=(\{S\}, \{a,b\}, P, S)$ with productions $S \longrightarrow aaSb\ |\ abSbS\ |\ \varepsilon$.

- Rewrite the following grammar to eliminate left-recursion:

$$

exp \longrightarrow exp + term \mid exp\ -\ term \mid term .

$$ - Write a grammar to parse arithmetic expressions (with $+$ and $\times$) on integers (such as $0$, $42$, $-1$). This is a little harder than it first sounds because you will need to write a grammar to generate correctly-formatted positive and negative numbers; a grammar that generates $-01$ is unacceptable. You may use dots notation to indicate obvious replication of rules, as in “$D \longrightarrow 0 \mid \dots \mid 9$”, without comment.

(Note that a parser is not an evaluator. This question is**not**asking you to write an evaluator. Also note that the grammar only needs to be unambiguous if the question asks you to provide an unambiguous grammar.) - Write two distinct parse trees for $2+3*4$ and explain in intuitive terms the significance of the two different parsings to their denotation.

# Question IV: DFAs and NFAs

You may find draw.io useful for drawing automata. If you know of a similar and better tool, please let me know.

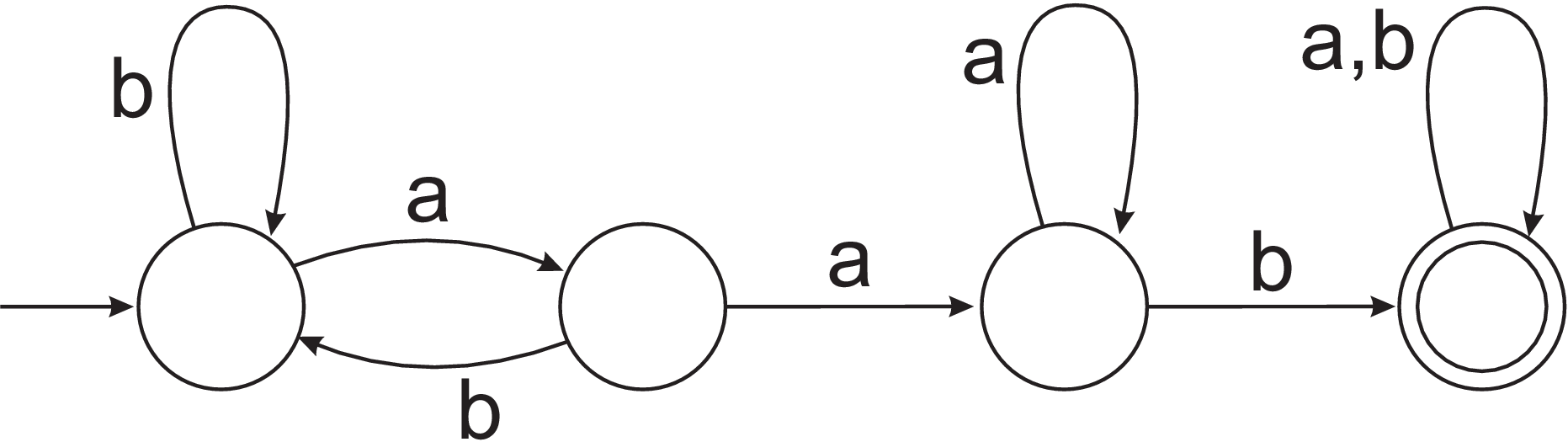

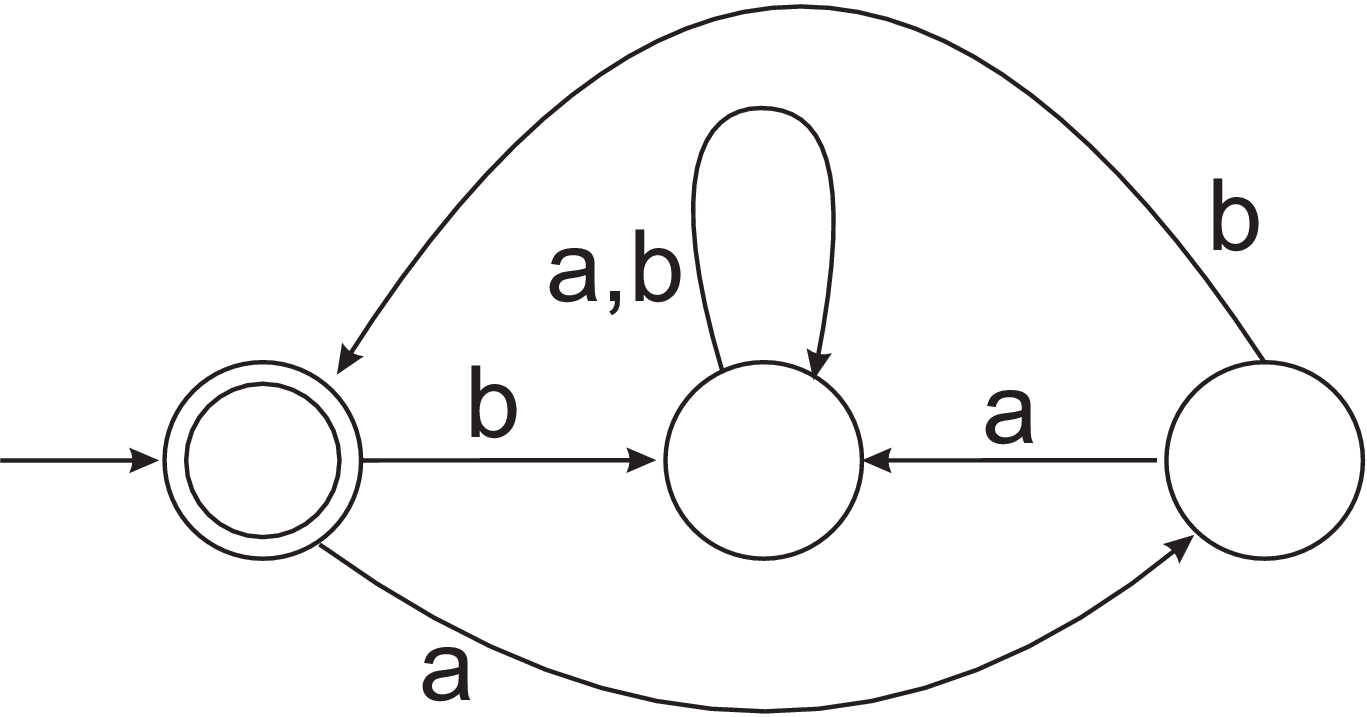

- By writing a regular expression or a grammar, describe the language accepted by the DFA

- By writing a regular expression or a grammar, describe the language accepted by the DFA

- Construct NFAs (possibly with $\epsilon$-moves) to recognise the languages on alphabet {a,b} such that:
- $L=\{w\in\{a,b\}^*\ |\ \mbox{ $w$ contains at most two $a$s }\}$ So $\epsilon$ and $aa$ and $bbbbabba$ are in $L$ and $aaa$ is not.
- $L=\{w\in\{a,b\}^*\ |\ \mbox{ $w$ contains an even number of occurrences of $ab$ as a subword }\}$ So $\epsilon$ and $a$ and $b$ and $abab$ and $abaaba$ and $baaabab$ are in $L$, but $ab$ and $ababab$ and $abaabab$ are not.
- $L=\{w\in\{a,b\}^*\ |\ \mbox{ the first and the last letter of $w$ are identical }\}$

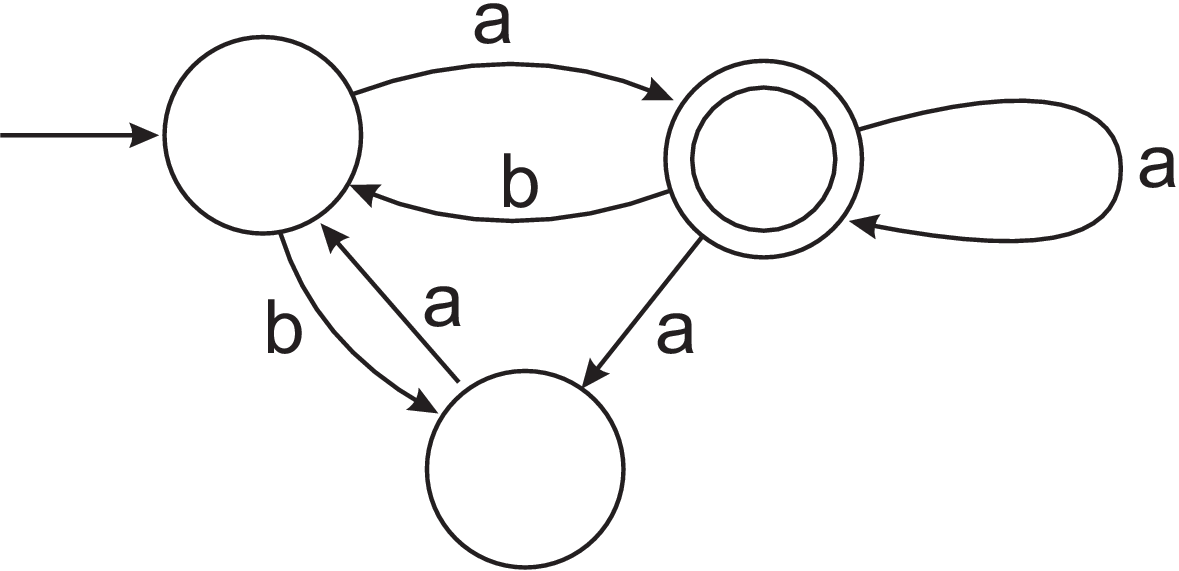

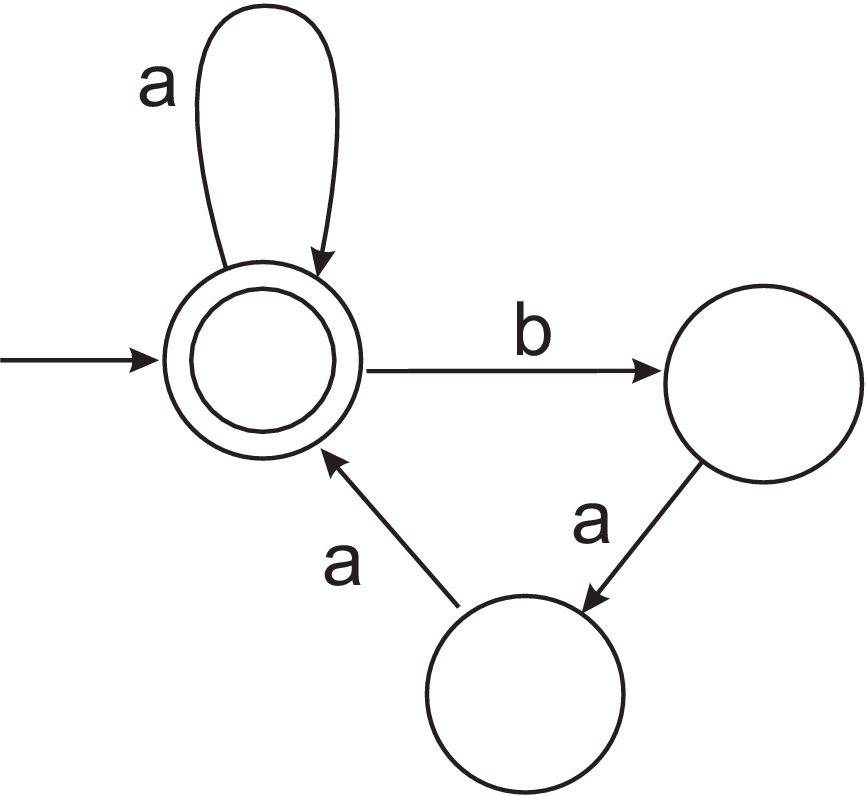

- By writing a regular expression or a grammar, describe the language accepted by the NFA

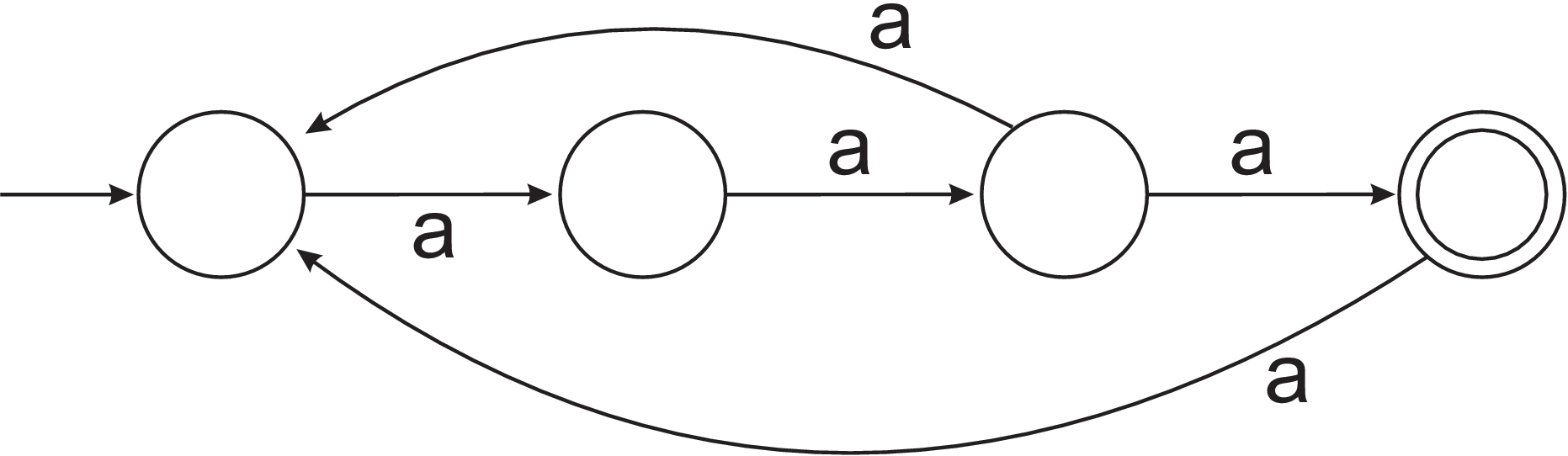

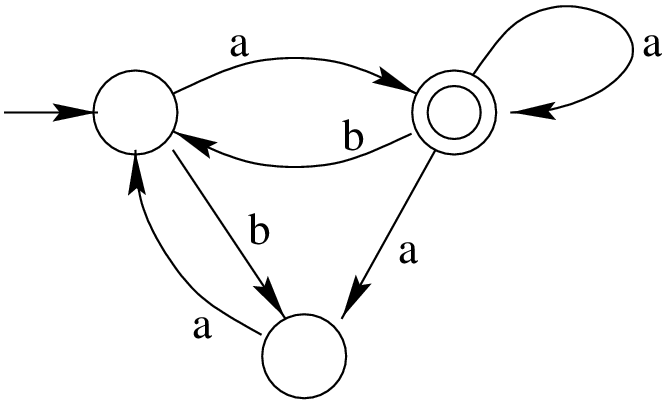

- By writing a regular expression or a grammar, describe the language accepted by the NFA

*(Unmarked)*Use the powerset construction (see lecture 5) to construct a DFA that recognises the same language as the following NFA:

*(Hard)*Let $L$ be the language recognised by the NFA

- Construct a context-free grammar $G$ that generates language $L$ (a regular grammar is also fine, since every regular grammar is context-free).
- State with proof whether $G$ is ambiguous or unambiguous.

*(Unmarked)*Let $G=(\{S,A,B\},\{a,b\},P,S)$ be the context-free grammar with productions

$$

\begin{array}{lcl}

S & \longrightarrow & aAbS\ |\ bBaS\ |\ \varepsilon,\\

A & \longrightarrow & aAbA\ |\ \varepsilon,\\

B & \longrightarrow & bBaB\ |\ \varepsilon.

\end{array}

$$

Give a short and intuitive English description of the language determined by $G$ (such a description does exist).

# Question V: PDAs

In the questions below, assume the alphabet is $\{a,b\}$. Your answer must state the acceptance mode used. In the questions below, the word *describe* means *draw a precise picture of* in the style I used in lectures or in the style of this webpage or this pdf, or just search the Internet for how to draw a PDA.

- Describe a pushdown automaton that recognises \(\{a^m b^n a^m \mid m,n\geq 0 \}\).
- Assume \(m,n\geq 0\). Describe a DFA that recognises \(\{a^m b^n a^m \}\).

Explain why this question is different from the previous question. - Describe a pushdown automaton that recognises \(\{a^m b^{2n}\mid m,n\geq 0 \}\).
- Describe a pushdown automaton that recognises \(\{a^m b^n\mid m> n > 0 \}\).
- Describe a pushdown automaton that recognises \(\{ w \mid {\#{}_a} w={\#{}_b} w \}\),

where \(\#{}_a w\) is the number of $a$s appearing in $w$ and \(\#{}_b w\) is the number of $b$s appearing in $w$. - Describe a pushdown automaton that recognises \(\{ w \mid \#{}_a w=2\#{}_b w \}\).
- Describe a pushdown automaton that recognises \(\{ w \mid \#{}_a w\neq \#{}_b w \}\).

*Some exercises based on these notes.*
